1. Kallithea Railway Station Athens Ecodynamis

    Kallithea Railway Station

Kallithea Railway station

Projects

  1. Public Spaces
A triangular ending point that penetrates the city forms the entrance of Kallithea station. The shape of this public space is given with elements such as steps, levels, platforms and benches and they form to the transition point between the station and the city.

The reception building of the station from the side of Kallithea, accommodates all the necessary services for the passengers of the train station: ticket-counter, observation post, etc. It is a large hall, connected directly with the gallery, which is located on the lower-ground level of the building, and expands under the platform.
Finally, the characteristic cast iron canopy structure and their balusters are traces of the old station and as such are preserved and at some cases are reinstalled over new bases, whilst the material of the canopy  is new.

This project was a collaboration with Attelier A66, Athens 2002.

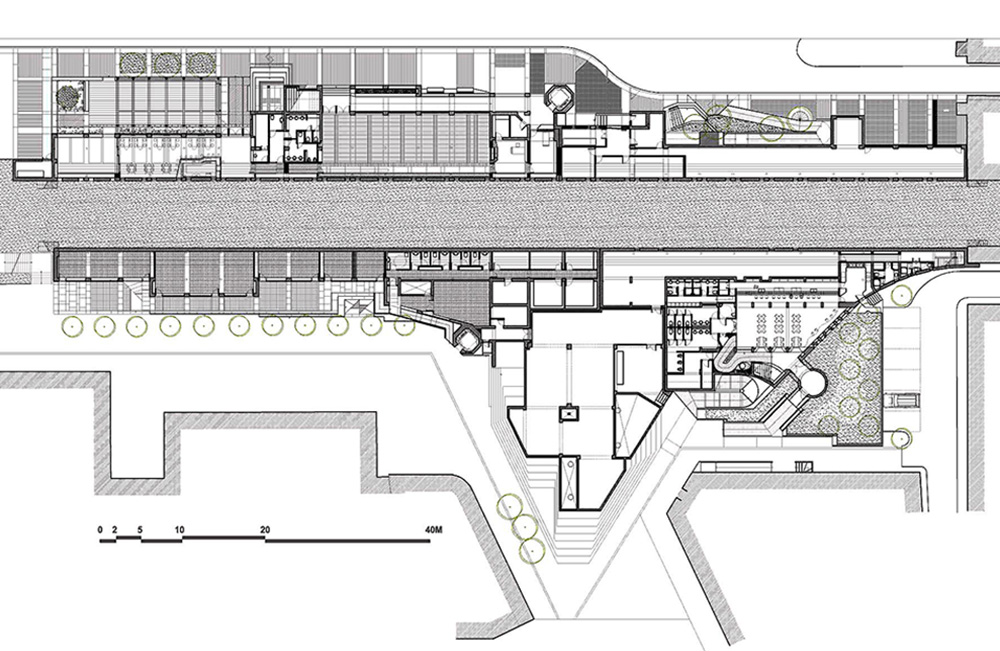

Kallithea lower ground level plan

Lower ground level

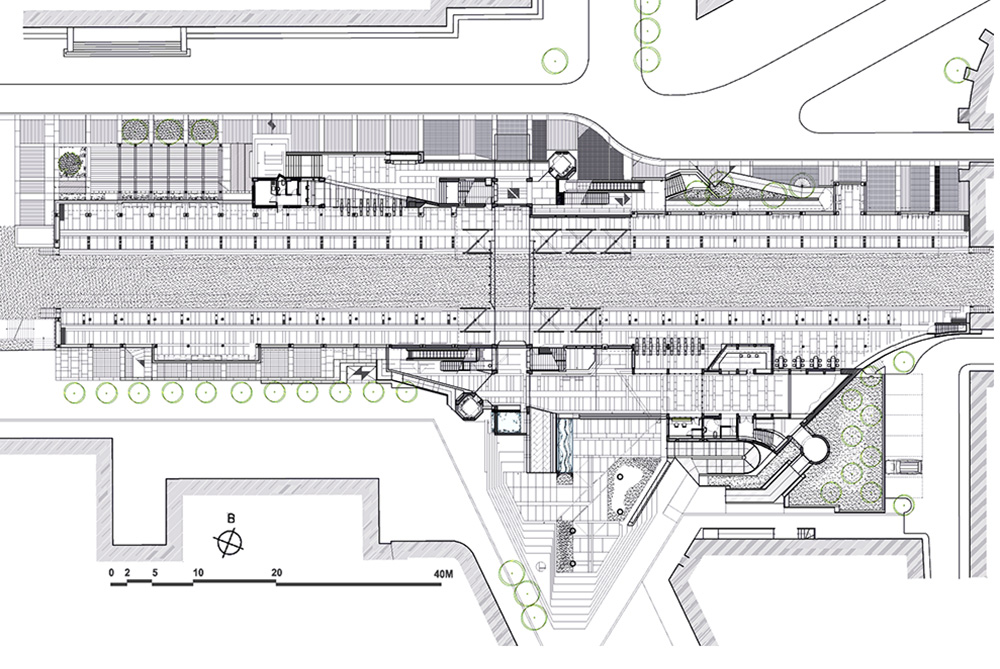

Kallithea platfrom plan Ecodynamis

Ground / Platform level



The Stoa

The stoa that expands underneath the platform of the station at a lower-ground floor and is located on the left of the triangular  entrance, serves commercial micro-activities.

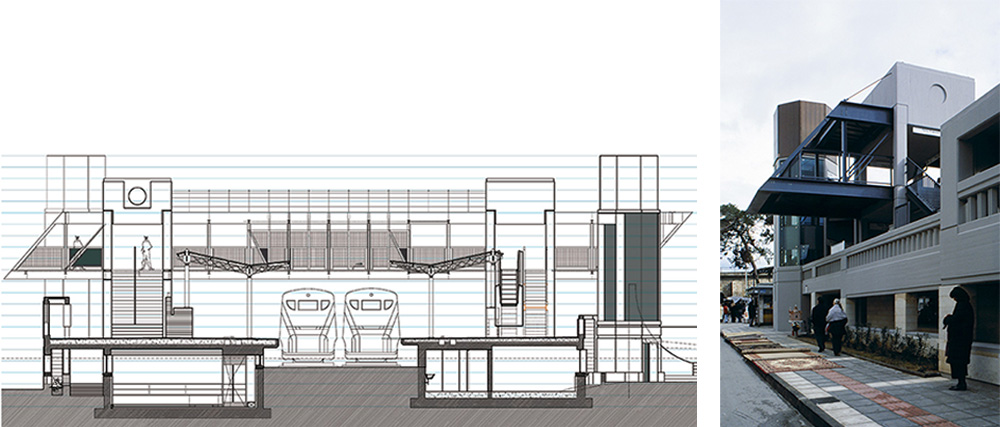

Kallithea railway station Ecodynamis

Longitudinal Section

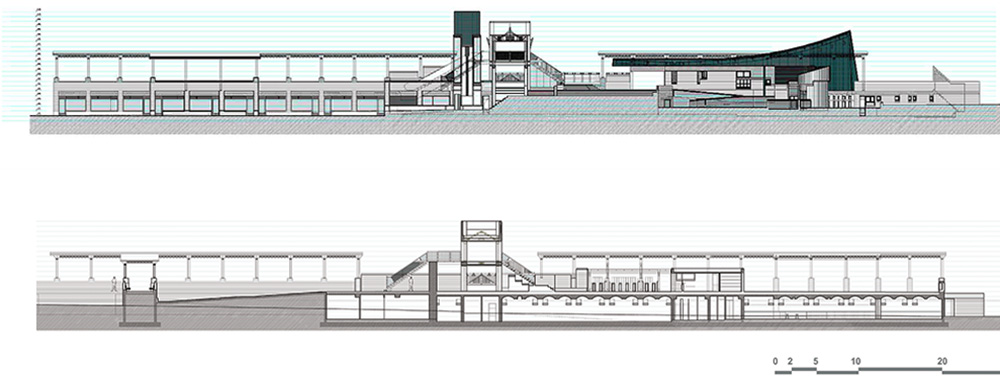

Kallithea-tomh-opsi

1. North Elevation 2. Section

The Staircase

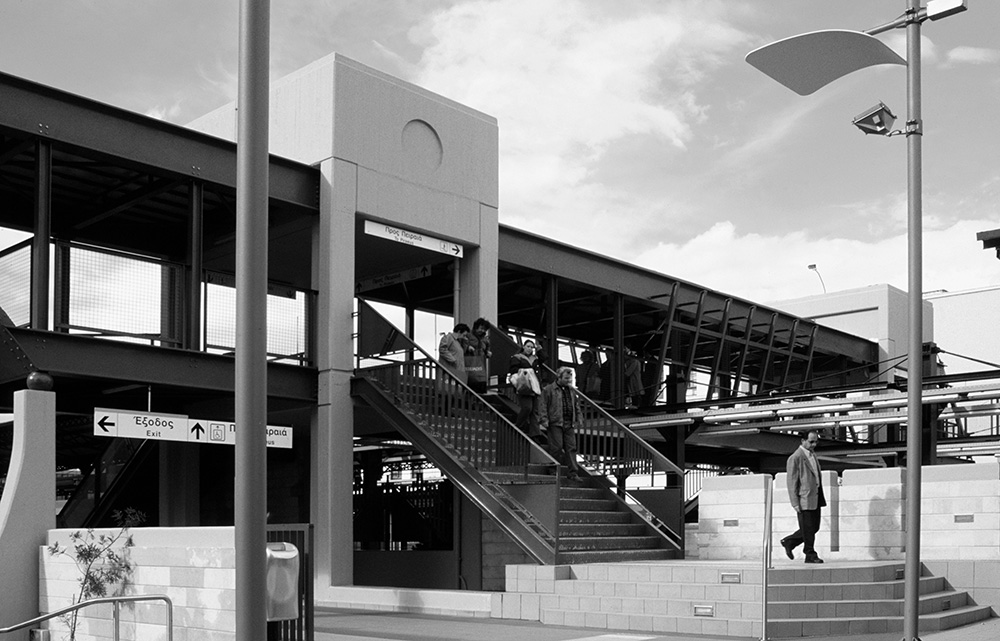

Kallithea-staircase

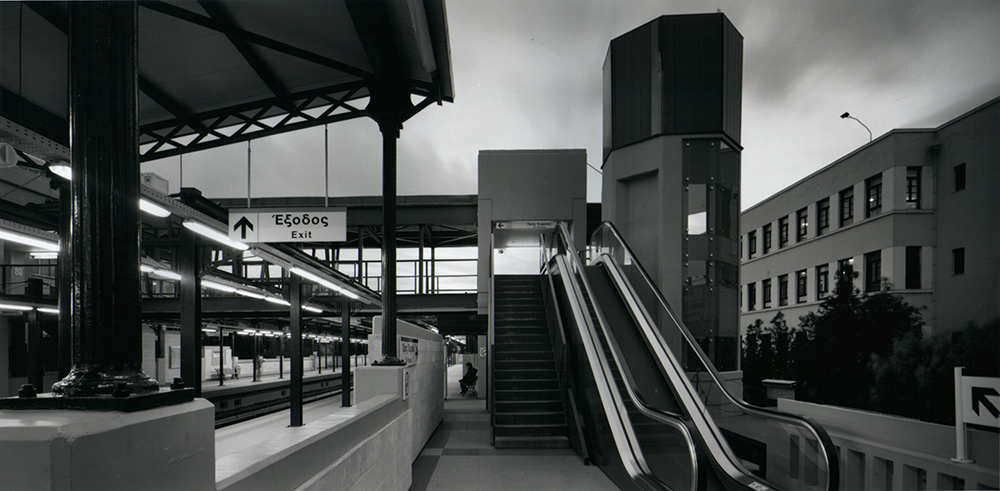

Railway station elevator ecodynamis

The Elevator
